RW22-RW101

PreFab Algae Raceways™ up to 101 m²

This first-of-its-kind system is engineered for medium- to large-scale operations. By leveraging APIAC™ technology and a patent-pending modular design, these prefabricated algae ponds range in size from 22 to 101 m² (6.5 to 30 m³), eliminating the complexities of traditional, custom-built raceways.

Instead of the laborious process of designing from scratch, sourcing disparate materials, and coordinating intricate installations, the RW22-RW101 series offers a completely integrated solution. Each system includes containment walls, a durable liner, paddle wheels, and optional control systems, all crafted for rapid deployment. Installation requires nothing more than level, compacted ground and a standard 110-230 VAC, 50-60Hz power source, underscoring the design’s commitment to efficiency and engineering excellence.

Acceleratescale-up


Prefabricated Algae Raceways™

  • Quick and easy assembly

  • No civil construction required aside from a leveled and compacted site

  • No specialized contractors required

Modular design

  • Variable lengths to meet area requirements

  • Every critical piece of the system was designed from the ground-up to work together

  • Entire system can be relocated as needs change

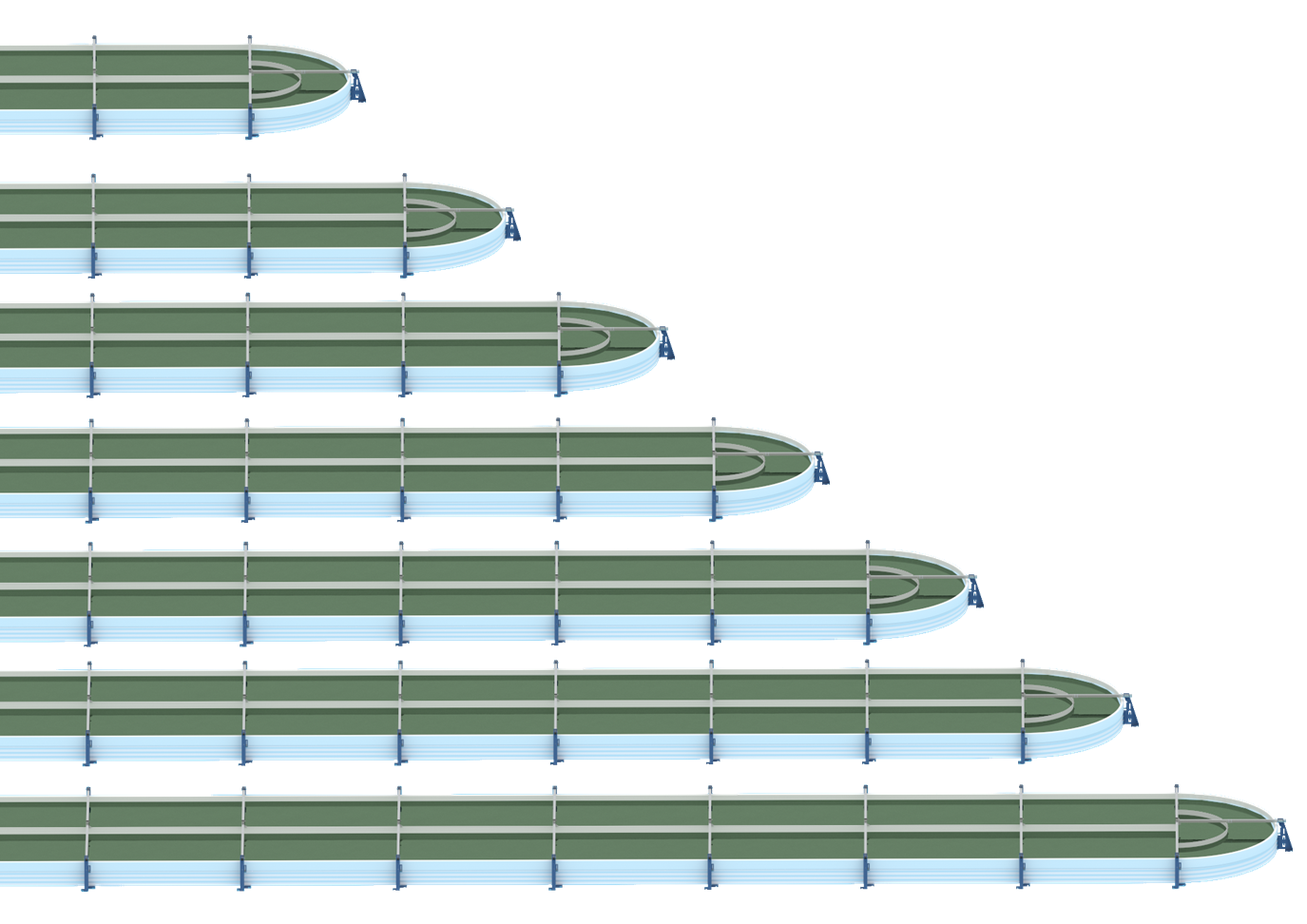

Algae Raceways™ come in twelve different sizes

*All lengths are inside dimensions

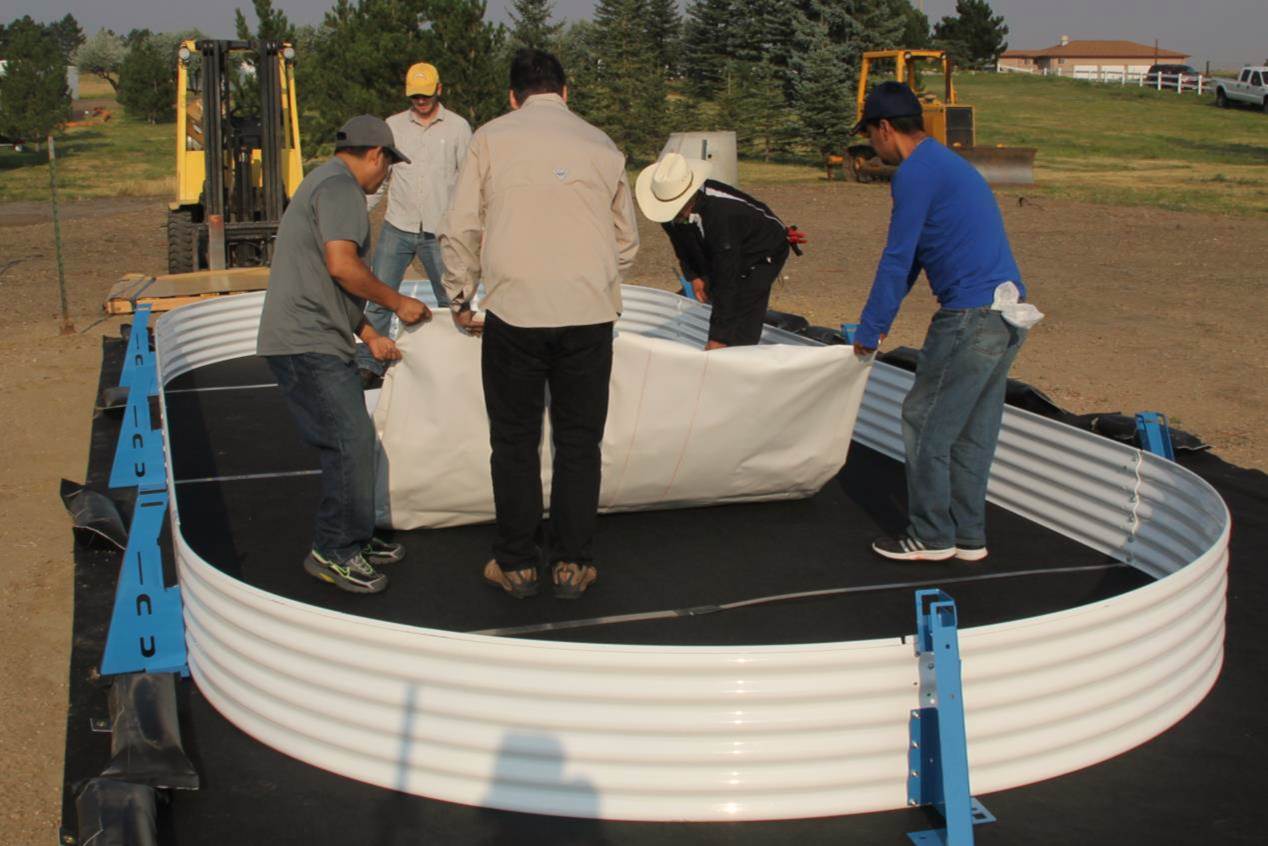

Drop-in Liner

  • Factory fabricated liner custom pre-fitted for the Algae Raceway™

  • No field-welding or sealing

  • NSF61 potable water grade liner







Robust steel wall and support system

  • Strong corrosion resistant materials

  • Complies with international import regulations


Pre-assembled paddle wheel

  • 316 Stainless steel paddle wheel for superior corrosion resistance and long life

  • Gearmotor and control box are delivered ready to run


Center divider and turning vanes

  • Drop-in liner contains a baffle curtain style center divider

  • Turning vanes decrease dead zones and improve mixing efficiency

  • Additional turning vanes can easily be added and all vanes can be repositioned as desired

Debris Screen

  • Removable stainless steel debris screen prevents objects from entering paddle wheel zone

APIAC™ is a registered trademark of Colorado Lining International
